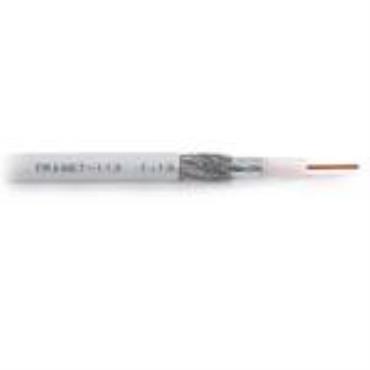

RG59-0.81CU (90% TC braid coverage) is a high-quality coaxial cable with copper core and tinned copper braid covering 90% of the dielectric, designed for use in indoor CCTV systems. Copper core with a diameter of 0.81 mm ensures low attenuation, and a thick braid effectively shields the transmitted signal against the influence of external electromagnetic fields and prevents its leakage out of the cable.

Cables with aluminum braid are increasingly used in SMATV and CCTV systems.

Features:

90% braid coverage (TC),

for indoor applications,

preliminary quality control of materials and thorough tests of the final product,

meter markers.

Specifications

Name CCTV Cable

Code AP-RG59 FC

Physical specs

Core Material Bare Copper

Diameter 20AWG (0.81mm)

Dielectric Material Mechanically Foamed PE

Outer diameter 3.66 mm

Color White

Foil Material Aluminum/PET

Thickness 0.015~0.020mm

Braid Material Tinned Copper Wires

Wire Diameter 0.12 mm

Layout 90% coverage

Jacket Material PVC

Outer Diameter 6.0 +/- 0.20mm

Color Black

Electrical Parameters (20°C)

Core Resistance <36 Ω/km

Capacitance 67pF/m

Impedance 75+/- 3 Ω
