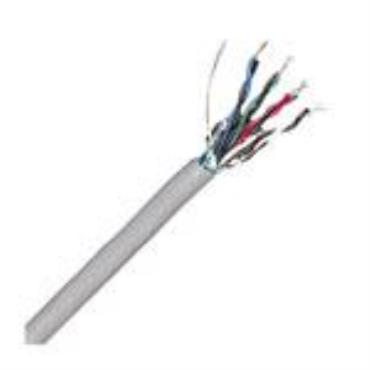

UTP CCTV Surveillance Cable

Application: For UTP-CCTV, PTZ cameras, video over twisted pairs, telephone, TV, computer data transmission, security and burglar alarm system, information networking, 110BaseTX, AES/EBU, digital video, and Gigabit Ethernet applications

Description:

Conductor: 24AWG Oxygen Free Copper

Insulation: Color Coded PE

Shield:

FTP: Al-foil Mylar + TC Drain Wire

SFTP:AL-Foil Mylar + TC Wire Braiding

Rip cord

Jacket: PVC (FR-PVC/PE/LSOH/LSZH/ROHS optional)

Long time working temperature: ≦75℃

Packing length: 305m/box

Certificate: CE, UL, ROHS

1) U/UTP unshielded twisted 4 pairs category 5e cable

2) F/UTP shielded twisted 4 pairs category 5e cable

3) SF/UTP double shielded twisted 4 pairs category 5e cable

Reference Standards:

ISO/IEC 11801, ANSI/TIA/EIA-568B, YD/T838-1997
