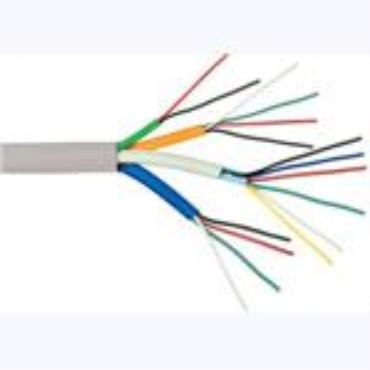

We provide composite access cable specifically designed for access control systems. Widely used in public buildings including hospitals, government and local authority offices as well as commercial and retail organisations where security and safety are important. The structure: Multiple wires combined in a single jacket helps minimize the cost of pulling and cost effective installation.

Structure

Stranded bare copper

Color coded PVC insulation

100% Aluminum/polyester foil shield

Tinned copper drain wire

PVC (Polyvinyl Chloride)

(Insulation/Jacket: LSZH/LSOH, FR-PVC, ROHS, PE optional)

Technical Data

Operation Temperature: -15°C to +70°C

Installation Temperature: ≥0°C

Rated Voltage: 300/300V

Reference Standards

BS4737: Intruder alarm systems in buildings

BS6746: PVC Insulation and Jacket

NEC 725/800, UL: CM / CMR, CL2

Application

Alarm Monitoring Control

Access Control

Paging Systems

Fire Alarm Monitoring Systems

Broadcast Systems

Temperature Control Monitoring Systems

Camera Surveillance

High Temperature Control Systems

Communications Systems

Unshielded Access Control Cable

Part No. Conductor Insulation

mm Jacket

mm Conductor Resistance

@ 20°C Insulation Resistance

@ 20°C

AP-2*0.22+2*0.5 2*0.5mm2 + 2*0.22mm2 BC 1.5/1.05 4.1 0.22mm2: 92 Ohms/km

0.5mm2: 40 Ohms/km 0.22mm2: 0.014 MOhms/km

0.5mm2: 0.012 MOhms/km

AP-4*0.22+2*0.5 2*0.5mm2 + 4*0.22mm2 BC 1.5/1.05 4.6

AP-6*0.22+2*0.5 2*0.5mm2 + 6*0.22mm2 BC 1.5/1.05 4.9

AP-8*0.22+2*0.5 2*0.5mm2 + 8*0.22mm2 BC 1.5/1.05 5.7

AP-10*0.22+2*0.5 2*0.5mm2 + 10*0.22mm2 BC 1.5/1.05 6.0

AP-12*0.22+2*0.5 2*0.5mm2 + 12*0.22mm2 BC 1.5/1.05 6.3

AP-2*0.22+2*0.75 2*0.75mm2 + 2*0.22mm2 BC 1.8/1.05 4.6 0.22mm2: 92 Ohms/km

0.75mm2: 26 Ohms/km 0.22mm2: 0.014 MOhms/km

0.75mm2: 0.010 MOhms/km

AP-4*0.22+2*0.75 2*0.75mm2 + 4*0.22mm2 BC 1.8/1.05 5.0

AP-6*0.22+2*0.75 2*0.75mm2 + 6*0.22mm2 BC 1.8/1.05 5.4

AP-8*0.22+2*0.75 2*0.75mm2 + 8*0.22mm2 BC 1.8/1.05 6.2

Shielded Access Control Cable (Al-foil+TC Drain Wire)

Part No. Conductor Insulation

mm Jacket

mm Conductor Resistance

@ 20°C Insulation Resistance

@ 20°C

AP-2*0.22+2*0.5 2*0.5mm2 + 2*0.22mm2 BC 1.5/1.05 4.3 0.22mm2: 92 Ohms/km

0.5mm2: 40 Ohms/km 0.22mm2: 0.014 MOhms/km

0.5mm2: 0.012 MOhms/km

AP-4*0.22+2*0.5 2*0.5mm2 + 4*0.22mm2 BC 1.5/1.05 4.8

AP-6*0.22+2*0.5 2*0.5mm2 + 6*0.22mm2 BC 1.5/1.05 5.1

AP-8*0.22+2*0.5 2*0.5mm2 + 8*0.22mm2 BC 1.5/1.05 5.9

AP-10*0.22+2*0.5 2*0.5mm2 + 10*0.22mm2 BC 1.5/1.05 6.2

AP-12*0.22+2*0.5 2*0.5mm2 + 12*0.22mm2 BC 1.5/1.05 6.5

AP-2*0.22+2*0.75 2*0.75mm2 + 2*0.22mm2 BC 1.8/1.05 4.8 0.22mm2: 92 Ohms/km

0.75mm2: 26 Ohms/km 0.22mm2: 0.014 MOhms/km

0.75mm2: 0.010 MOhms/km

AP-4*0.22+2*0.75 2*0.75mm2 + 4*0.22mm2 BC 1.8/1.05 5.2

AP-6*0.22+2*0.75 2*0.75mm2 + 6*0.22mm2 BC 1.8/1.05 5.6

AP-8*0.22+2*0.75 2*0.75mm2 + 8*0.22mm2 BC 1.8/1.05 6.4
