Description

Interconnection of video/VGA Monitor, CAD and graphic workstations for preparing monitor cables at custom lengths, maximum graphics performance, prevent signal loss, screen ghosting & loss of color.

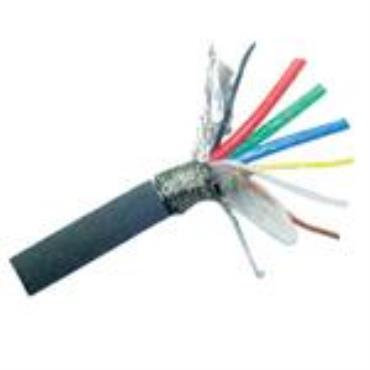

Structure

RGB x 3

Conductor: 7/0.12mm stranded tinned copper (28AWG)

Insulation: 1.50mm PE

Shielding: 40 x0.12mm tinned copper braid

Jacket: 2.40mm PVC (Red, Blue, Green)

Control Wire x 4

Conductor: 7/0.15mm stranded tinned copper

Insulation: 1.10mm PVC (Yellow, Black, Brown, White)

Overall Shielding: 100% aluminium/polyester foil

Drain wire: 7/0.12mm stranded tinned copper

Braid Shield: 96 x 0.12mm tinned copper

Jacket: 8.0mm black PVC (FR-PVC/LSZH/ROHS optional)

Standard Packing 100m, 200m, 1000FT

Technical Data

Operation Temperature: -15°C to +70°C

Installation Temperature: ≥0°C

Rated Voltage: 30V
