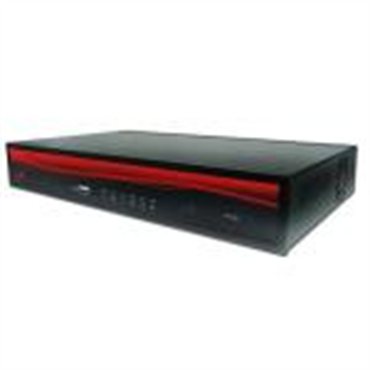

Acumen Ai-D243 H.264 DVR
ACUMEN int. Corp.
Region: Taiwan
Update: 2009/05/06
INQUIRY
Key Specifications
Compression: H.264 (MPEG4-10PART)- Average Dynamic Compression rate = 40: 1 ~ 2400: 1
Recording Speed: NTSC 120 fps, PAL 100 fps Recording Mode Normal, manual, schedule, alarm, event, sensor
Resolution: NTSC/ PAL: D1/Half-D1/CIF
Hard Disk: 1 HD, SATA interface (adapter for option) and 750G is available.
Network Functions: TCP/IP, HTTP, DHCP, ADSL, LAN, DDNS.
Operation System: ACUMEN DVR supports IR controller and ACUMEN AP. Graphic OSD and friendly operating system. AP software and IE Brower Remote monitoring support the complete function for users. E-mail & MSN notification, cell phone supported Playback (Search) Search method: segment, time, event, calendar Backup Function H.264 compression, AVI format, ACUMEN AP Alarm Functions Pre Alarm for 16MB, up to 999 seconds for post alarm.
Video In BNC x 4ch (1 Vp-p 75Ω BNC)
Audio In RCA x 1ch (24K bps ADPCM Recording mode)
Video Output BNC x2, D-SUB VGA x1.
Audio Out RCA x 1ch Network RJ45 (100/10Mbps Ethernet).
Backup Function USB slots for Firmware update and backup download.
Power Supply 100~240VAC, 50/60Hz,5A Dimensions 300mm × 175mm× 45 mm
Weight 4.0 KG
