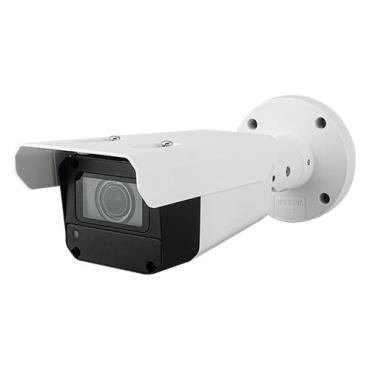

Ability VS1NNL0 is an ANPR AI motorized Varifocal Bullet network camera. Powered by Sony Starvis 2MP sensor, the frame rate reaches as high as 60 frames per second at a resolution of 1920*1080. The camera is deployed with a 5-50mm 10X lens and an IR illuminator up to 40 meters ( 70m under Planning ) effective range for better night visibility. Weather-proof IP66 & IP67 and vandal-proof IK10 housing make the camera withstand violent situations for outdoor surveillance applications.

The industry-leading AI ANPR Camera is also supported by the Ability innovative technology - Super HDR PRO (HDR+WDR) - an advanced image-processing technology with cutting-edge image quality than conventional dynamic range technology. Ability AI ANPR Camera specializes in vehicle detection and license plate recognition and promises remarkable performance whenever day and night.

Powered by Intel® Movidius™ Myriad™ X VPU, Ability VS1NNL0 is also ready for AI applications with Intel® Distribution of OpenVINO™ Toolkit, which optimizes pre-trained deep learning models. It is an easy to use system that meets customers'　application needs by making it convenient for developers to accelerate model training and deployment.

https://www.youtube.com/watch?v=w2mjVq2NFcA

Key Features

•Built-in Intel® Movidius™ MA2485 VPU

•Support Intel® Distribution of OpenVINO™ Toolkit

•High quality imaging with 2MP resolution

•Built-in IR Illuminators, Effective up to 40 meters ( 70m under Planning )

•Weather-proof IP66/IP67, Vandal-proof IK10 Housing

•Support ONVIF Profile S

Specifications

Model Name : VS1NNL0

Model Type : AI-Vue 2MP bullet

Operating System : Linux

Image Sensor : 1/2.8" progressive scan

Max. Resolution : 1920 x 1080 (2MP)

Focal Length : 5.1-51mm±5%

Auto-iris : Yes

Field of View : 55.2°~7.1°±5% (Horizontal) / 31.8°~4.1°±5% (Vertical) / 62.5°~8.1°±5% (Diagonal)

Shutter Time : 1/25 sec. to 1/8,000 sec.

HDR Technology : Yes

IR Illuminators : Built-in IR Illuminators up to 40 meters ( 70m under Planning )

Minimum Illumination : Color: 0.04 lx, F1.6 / Black: 0.02 lx, F1.6

Video Compression : H.264, H.265, MJPEG

Maximum Frame Rate : 60fps @1920 x 1080

Maximum Streams : 3 simultaneous streams

Image Settings :

Configurable Brightness, Contrast, Saturation, Sharpness, White Balance, Rotate View, Exposure Mode, Stream Format, Resolution, Frame Rate, Rate Control, Video Quality, HDR, DWDR, IR Cut Filter, 2DNR/3DNR, Privacy Masks, Video Rotation

Audio Compression : AAC, G.711

Network Protocols :

IPv4, HTTPS, SSL/TLS, DNS client, NTP client, TCP, UDP, IGMP, ICMP, DHCP, ARP, RTCP, RTSP, RTP

ONVIF : Profile S

Casing : IP66, IP67, IK10

Safety Certifications : CE, FCC class A, BSMI

Operating Temperature : IR ON: Operating temperature: -20℃ ~ 40℃ / IR OFF: Operating temperature: -20℃ ~ 60℃

Humidity : 20% to 55%

On-board Storage : 1x Micro-SD, SD/SDHC /SDXC UHS-I, 32GB to 256GB, class 10

Interface :

RJ-45 cable connector for Network 10/100/1000 Mbps PoE (IEEE 802.3at)/DC 12V/AC 24V

Alarm Input*1 & Output*1 / Audio Mic. in*1 & Line out*1

Web Browser : Google Chrome

Dimensions : 84mm X 77mm X 293.7mm

Accessories : VSHXXX0, Junction Box for standard bullet, Wall Mounting type
