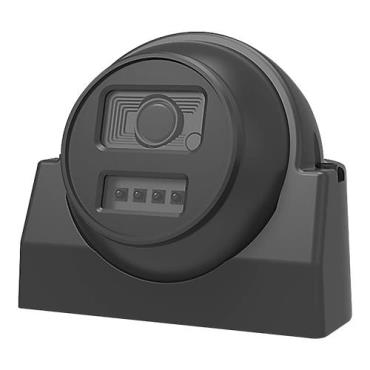

AI-Eye Series – 8M Camera is a decent edge computing IP camera with tiny form factor, high image quality, low bit rate, and low power consumption in IP66 / IK10 rated housing. The camera integrates ARM Cortex A9 CPU core, new generation ISP, H.265/H.264 video compression codec, high-performance hardware DLA module, graphics engine, display controller, Ethernet PHY, USB 2.0, audio codec, RTC and SD/SDIO 3.0 can provide the best cost-effective edge computing IP camera solution.

Key Features

•High quality imaging with 8MP resolution

•Dual Core ARM® Cortex™ A9

•Support DDR 1Gb *2 + Flash 4Gb

•DLA (Deep Learning Accelerator) engine with computing power up to 1.5 TOPS

•MDBC Motion detection and background construction engine

•Support up to 25fps @ 8MP

•Support H.264/AVC codec BP/MP/HP, level 5.1 H.265/HEVC codec MP, level 5.0

•Weather-proof IP66, vandal-proof IK10 rated housing, -20°C ~ 60°C wide temperature

•Allows SDK Customization

•Support ONVIF Profile S

Specifications

Model Type : AI-Eye 8MP Camera

Operating System : Linux

Image Sensor : 1/2.8" progressive scan

Max. Resolution : 3840x2160 (8MP)

Focal Length : 2.8mm±5%

Auto-iris : N/A

Shutter Time : 1/25 sec. to 1/8,000 sec.

HDR Technology : Yes

IR Illuminators : Optional

Video Compression : H.264, H.265

Maximum Frame Rate : 25fps @3840x2160

Audio Compression : AAC, G.711

ONVIF : Profile S

Casing : N/A

Web Browser : Google Chrome

Accessories : N/A
