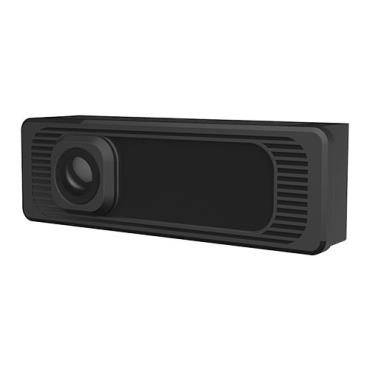

Ability AI Cube camera is powered by Intel Intel® Movidius™ Myriad™ X MA2085 VPU. AI Cube camera is developed on the OpenVINO™ toolkit structure, which can optimize pre-trained deep learning model data.

AI Cube camera supports UVC 2K(2560*1440) at 30FPS, formats in H.264, and uses the USB type C interface. We offer two types, AI USB camera module and AI USB camera. AI USB camera module can build-in features such as digital signage and self-checkout kiosk, while AI USB camera has a housing design that can be mounted on digital signage.

https://www.youtube.com/watch?v=V3Ze0SQSJSo

Key Features

•Built-in Intel® Movidius™ MA2085 VPU

•Intel® Distribution of OpenVINO™ Toolkit

•High-quality imaging with 8MP resolution

•USB 5V with Type C

•Dimensions: 107mm * 33mm * 29mm

Specifications

Model Name : PVSUPRH1

Model Type : AI-Vue 8MP Myriad X USB A.I. camera

Operating System : RTOS

Image Sensor : 1/2.8" progressive scan

Max. Resolution : 3840 x 2160 (8MP)

Focal Length : 2.8mm±5%

Field of View : 110° (Horizontal) / 63° (Vertical) / 128° (Diagonal)

Maximum Frame Rate : 30fps @2560 x 1440 (2K)

Video format : H.264

Supported Frameworks : ONNX, TensorFlow, Caffee, MXNet

Supported Languages : C/C++/Python

OS : Microsoft Window PC / Linux device / Apple Mac device / Raspberry Pi

Storage : LPDDR4 8Gbit

Input Power : USB 5V

Internal Microphone : 1 ch Digital MIC

Interface : USB type C connector (USB 3.0)

Dimension : 107mm * 33mm * 29mm
