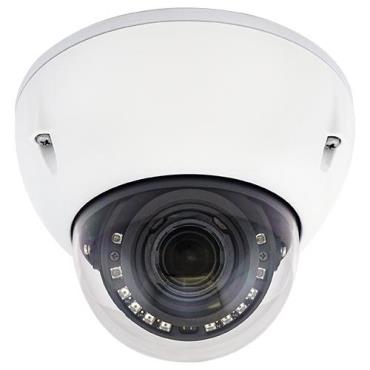

Ability offers software-defined 8MP/2MP resolution AI dome camera with industrial-grade design. Empowered by Intel® Movidius™ Myriad™ X VPU, the 8M/2MP AI dome cameras were developed by Intel® Distribution of OpenVINO™ Toolkit, which can optimizes pre-trained deep learning models. It is easy to use a system to match the needs of a customer’s application, which makes it more convenient for developers to accelerate model training and deployment.

https://www.youtube.com/watch?v=VMeLSkqEWuQ

https://www.youtube.com/watch?v=ENNpUUKHsvA

Key Features

•Built-in Intel® Movidius™ MA2485 VPU

•Intel® Distribution of OpenVINO™ Toolkit

•High quality imaging with 8MP/2MP resolution

•Built-in IR Illuminators, Effective up to 30 Meters

•Weather-proof IP66/IP67, Vandal-proof IK10 Housing

•Supports ONVIF Profile S

Specifications

Model Name : VS6NLB0 / VS6NN60

Model Type : AI-Vue 8MP Dome (VS6NLB0) / AI-Vue 2MP Dome (VS6NN60)

Operating System : Linux

Image Sensor : 1/1.8" progressive scan (VS6NLB0) / 1/2.8" progressive scan (VS6NN60)

Max. Resolution : 3840x2160 (8MP) / 1920 x 1080 (2MP)

Focal Length : 4.46mm~11mm±5% (VS6NLB0) / 2.8mm±5% (VS6NN60)

Auto-iris : f/1.5 ~ f/4.3 (VS6NLB0) / N/A (VS6NN60)

Field of View :

(VS6NLB0)

40.03°~ 110.9°(Horizontal) / 22.59°~ 57.4°(Vertical) / 45.98°~136.6°(Diagonal)

(VS6NN60)

113.74°(Horizontal) / 61.5°(Vertical) / 134.45°(Diagonal)

Shutter Time : 1/25 sec. to 1/8,000 sec.

HDR Technology : Yes

IR Illuminators : Built-in IR Illuminators up to 30 meters

Minimum Illumination : Color: 0.09 lux / B&W: 0.03 lux (VS6NLB0) / Color: 0.04 lux / B&W: 0.02 lux (VS6NN60)

Video Compression : H.264, H.265, MJPEG

Maximum Frame Rate : 30fps @3840 x 2160 (VS6NLB0) / 30fps @1920 x 1080 (VS6NN60)

Maximum Streams : 3 simultaneous streams

Image Settings :

Configurable brightness, contrast, saturation, sharpness, white balance, rotate view, exposure mode, stream format, resolution, frame rate, rate control, video quality, HDR, LDC, IR cut filter, 2DNR/ 3DNR, privacy masks, video rotation

Audio Compression : AAC, G.711

Network Protocols :

IPv4, HTTPS, SSL/TLS, DNS client, NTP client, TCP, UDP, IGMP, ICMP, DHCP, ARP, RTCP, RTSP, RTP

ONVIF : Profile S

Casing : IP66, IP67, IK10

Safety Certifications : CE, FCC class A, BSMI, UL

Operating Temperature : IR ON: Operating temperature : -30℃ ~ 40℃ / IR OFF: Operating temperature : -30℃ ~ 55℃

Humidity : 20% to 55%

On-board Storage : 1x Micro-SD, SD/SDHC/SDXC UHS-I, 32GB to 256GB, class 10

Interface :

RJ-45 cable connector for Network 10/100/1000 Mbps PoE (IEEE 802.3at)/DC 12V/AC 24V

Alarm Input*1 & Output*1/Audio Mic. in*1 & Line out*1

Web Browser : Google Chrome

Dimensions : Ø142mm x 109.6 mm

Accessories : VSHXXX1, Junction Box for standard Dome, Ceiling Mounting type / VSHXXX3, Junction Box for standard Dome, Wall Mounting type
