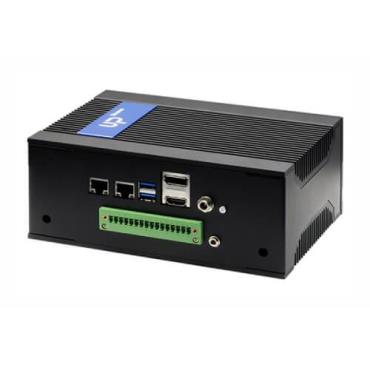

The UP Xtreme Edge Computing System, or UPX-Edge for short, is a complete embedded system that’s ready to go out of the box. Built on the UP Xtreme board, UPX-Edge is powered by 8th Generation Intel Core and Celeron processors (formerly Whiskey Lake) with up to 16GB of onboard RAM and 64GB of eMMC memory to power through any application. With the latest Intel graphics solution, the UPX-Edge is capable of 4K video output, and features a built-in audio jack as standard.

The UPX-Edge is designed with key industrial I/O features for flexibility and easy integration with existing infrastructure. I/O ports include two external GPIO connections, two COM ports, and four USB 3.2 Gen 1 ports. The UPX-Edge can also hold up to extreme conditions, with an operating temperature range of -20°C to 70°C (tested with AI Core XM 2280, 2x Intel Movidius Myriad X).

UPX-Edge makes deploying a powerful edge system easy, whether it’s as a factory IoT gateway, AI powered machine controller, or in a smart retail application.

Features

• Intel WHL-U Core i7/i5/i3/Celeron Processor SoC
• Onboard Single Dual Channel DDR4 memory, up to 16GB
• eMMC 64GB
• GPIO x 2
• USB 3.2 Gen 1 x 4
• COM port x 2
• LAN x 2
• Audio Jack x 1 (line out+ Mic)
• 12-60V DC-in
