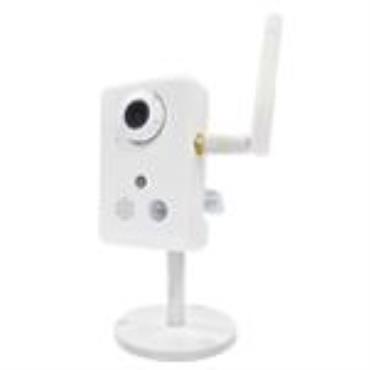

Model Number |
AH21K8M (PnP) |
Effective Pixels |
1280 x 1024 pixels |
Lens |
f: 2.6mm |
IR LED |
High-light IR LED* 1pc
Support auto/ manual/ schedule mode for IR LED on/off |
Mechanical ICR |
Yes |
Video Encoder |
H264 |
Video Mode |
1.3M Mode (4:3) and 720p Mode (16:9) |
Video Profile |
Dual stream simultaneously |
Frame Rate |
Up to 30fps (NTSC) / 25fps (PAL) |
Image Setting |
AE, AWB
3D Noise reduction
Digital WDR
Lens distortion correction (LDC)
Defog
Anti-false color
Exposure Value, Color Level, Brightness, Sharpness, Contrast
Mirror/Flip
Privacy Masks
Multi-language text, time and image overlay on OSD |
Streaming |
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264) |
ROI |
2 editable windows for region on interest |
AOI |
Higher quality in area of Interest |
|
Audio Encoder |
AAC |
Audio Streaming |
One-way or two-way |
Audio Input / Out |
Built-in MIC
Built-in speaker |
|
Ethernet |
10/100M auto negotiation |
Wireless |
NA |
802.11n |
WPS |
NA |
V |
Supported Protocols |
IPv6, IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, QoS |
DDNS |
DIPS |
NAT Transversal |
UPnP NAT transversal |
Plug and Play |
AH21K7M |
AH21K8M |
Security |
Password protection, IP address filtering,
HTTPS encrypted data transmission, user access log |
Users |
8 simultaneous unicast users |
|
SDK |
Open API for software integration
ONVIF (AH21K1M , AH21K2M ) |
Alarm Triggers |
PIR detector for human (far-infrared)
Motion detection
Camera tampering
Audio Detection |
Motion Detection |
Video motion detection up to 10 windows |
Alarm Events |
Video file upload via FTP server
Video file upload via email server
Video file upload via Samba to NAS
Notification to HTTP, and TCP server
Audio alerting output
Save video file to local mSD card
Push notify to smart phone apps |
Video Buffer |
Pre- and post- alarm buffering |
|
Power Supply |
12V DC external power adapter |
Connectors |
RJ-45 10BaseT/100BaseTX
12V DC power jack
mSD card
Factory default reset / WPS button |
Indication LED |
Green and orange LEDs |
Operating Temperature |
0°C ~ 40°C |
Operating Humidity |
20% ~ 80% (non-condensing) |
|
OS |
Windows XP, Vista, Win7, Win8 |
Browser |
IE 8.0 or latter / Firefox / Safari / Chrome |
Video Player |
VLC, Quick Time, Real Player, Core Player, iPhone & Android App |
|
Search & Installation |
IPWizardⅡ |
Smart Phone Apps |
iVanguard for iOS
SecuAngel for Android OS
PanoTube for PnP application |
Bundled NVR Program |
SecuGuard 6.x:
64ch. multi-channel supports Tri-decoder
16ch. video playback (synchronization)
Smart & re-sizeable digital zoom.
Snapshot and edit
Motion, DI, Scheduler recording
Fast rewind and forward (MPEG4, H.264, MJPEG rewind)
32x24 motion detection grids
Smart search (by time, by motion)
E-MAP
Event schedule setting
Remote service
Camera tampering |
