Videotec presents
NTX, the new IP68 stainless steel thermal camera, developed to provide an efficient and preventative surveillance system in the most critical environmental conditions.
The
NTX thermal camera offers temperature detection based on the 4 central pixels of the image, and with the advanced version, the temperature of a specific object can be measured at any point in the image by means of defining a specific area. As well as this, the radiometric functions offer the option to set a temperature limit, beyond which an alarm will be raised.
These functions are necessary where fire prevention is required or in applications such as monitoring industrial processes or critical equipment, where the ability to identify something quickly and accurately, thus preventing problems or failures and keeping intervention times to a minimum, is essential.
NTX can export all the data necessary for a centralised management of video feeds, data and alarms, and make it available to VMS via the ONVIF Profile S and Profile Q communication protocols. Also, configuring and controlling thermal image parameters is possible via the ONVIF Thermal Service Standard.
NTX allows exploiting fully the features and the advantages offered by the thermal camera. This includes the ability to raise an alarm and initiate immediate actions in order to prevent accidents or unwanted intrusions into monitored areas.
The

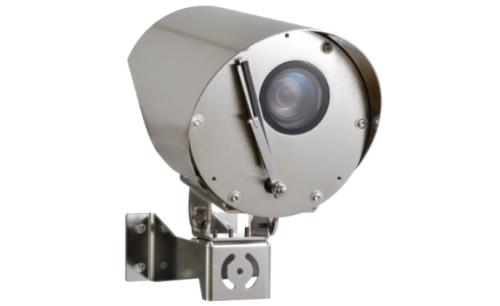

NTX camera is made entirely from electropolished AISI316L stainless steel and stands out thanks to its compact design and light weight. This, and the fact that it can be connected quickly, makes installation and maintenance easier. The modular support for wall, ceiling or parapet is supplied as standard.
The NTX has obtained Lloyd’s Register Marine Type Approval certification for the maritime and naval sector and complies with the standard for railway applications. NTX is exceptionally resistant to corrosion and has a wide operating temperature range (from -40°C to +65°C). Its IP66/IP67/IP68, NEMA Type 4X and Type 6P grades guarantee maximum protection and optimal camera operation in even the most adverse environmental conditions.
The fact that the NTX is extremely sturdy and of high quality means it is ideal for the most demanding applications in the marine and industrial sectors, in critical infrastructures, power plants and transport sector, including railways and motorway tunnels.
