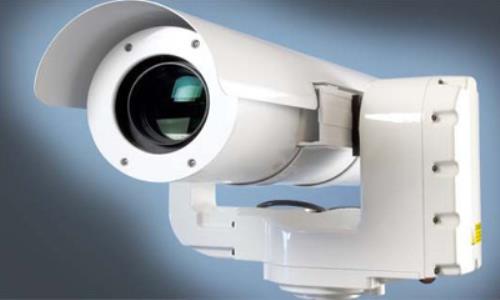

CohuHD Costar’s 4260HD camera positioning system combines HD image quality, bandwidth efficient H.264 compression, smooth variable speed positioning, and IP66/IP67 protection.
The 4260HD provides full 1080p imaging with 30x optical zoom, delivering full frame rate HD images over the entire zoom range for cost effective long-range surveillance applications. True day/night technology using a removable IR cut filter produces exceptional low light sensitivity down to 0.000063 fc. For installations subject to wind or vibration, electronic image stabilization assures steady, clear images and enables the system designer to utilize existing bridge sign and traffic light poles for camera mounting.
The 4260HD includes defog/dehaze image processing, enhancing video performance in foggy and hazy conditions encountered in surveillance and traffic monitoring applications. The 4260HD includes variable hi-speed pan and tilt drive, with 360° continuous pan and +90 to -90° tilt. Fast positioning speeds result in 180° movements in less than 2.5 seconds. The high-torque motor and gearing design, insures the positioner maintains position in high shock, vibration and hurricane force winds.
The 4260HD is designed to operate in harsh weather with its IP67 enclosure protection. This eliminates the effects of water intrusion, pollutants and corrosives.
Providing multiple video stream profiles, the 4260HD delivers up to 5 or more independently configured H.264/MJPEG streams as well as analog video output with serial RS422 camera PTZ control. Use of the IP and analog output allows integrating with analog systems today while providing a smooth transition to HD Video over IP tomorrow. The 4260HD provides a full function web server, allowing complete administrative and operator control capabilities.
Administrative features include configuring network settings, user password assignments, setting video streaming properties, configuring camera imaging properties, defining presets and tours, and assigning camera ID labels.
