Key Specifications

Touch-On

When you place your finger on fingerprint sensor, sensor will be activated automatically and will awaken the device from sleep.



PoE

Power Over Ethernet provides device network communication and the power is sufficient for both device and lock to operate.



Sense-On

When you reach out your hand to touch the keypad, P7 will be activated automatically and ready for your entering.



Easy Installation

The access interface adopts quick Install connector, without any tools to finish the wiring of the access control. The P7 with front and rear clamshell design will further simplifies installation operation for installer.



Features

l  Using Anviz intelligent core algorithm

l  3000 Fingerprints, 3000 Cards, 50000 Records

l  Optical waterproof fingerprint collection device, abrasion resistance, adapt to all kinds of fingerprints

l  Touch activation fingerprints sensor and keypad

l  Support POE power supply for both device and lock

l  RS485, mini USB and TCP/IP communications, Wiegand output

l  Directly controlled door lock, grouping management, time setting and relay

l  Output, tamper alarm door magnetic signal interface (known the door open and close state), to support himself back

l  Fingerprint, password and card (optional) combination of independence and recognition

l  Touch the bright background number keys

l  High precision OLED displays

l  Standard EM the RFID card reader module, optional Mifare Module

l  Optional waterproof cover, realize outdoor use, IP53

l  Software support for period of time, group management, 16 group access permissions, flexible control

l  32 entrance guard time real-time monitoring data, easy to learn and easy to use

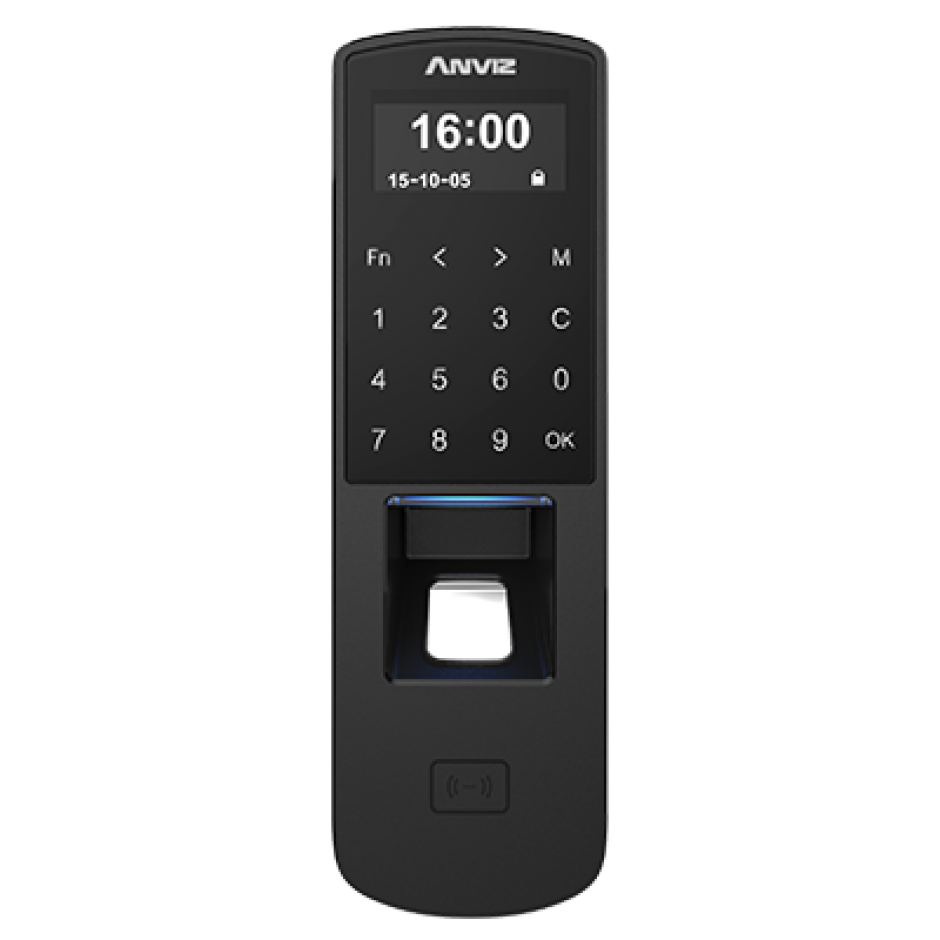

Anviz P7 PoE-Touch Fingerprint and RFID Access Control
