Description:
* 3.8mm (wide) ~ 38mm (tele) lens.
* 10X Optical zoom & 10X digital zoom.
* Endless 360°/sec pan/tilt motion .
* Sense-up (DSS): x2~x128.
* 24VAC Operation.
* Outdoor or indoor use. (IP66)
* Built-in heater and fan.
* Maximum of 127 preset target views, each with its own characteristics such as white balance, auto exposure, zoom & focus.
* Up to 95° tilt, up to 180° with auto-flip.
* Compatible with ENFORCER DR-1 series DVRs.

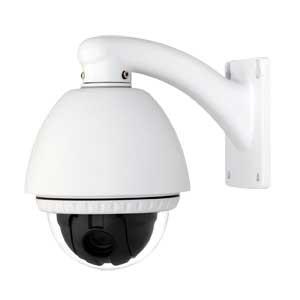

* Wall-mount bracket included; other mounting brackets available separately.
* PAL version also available as a special order item. Contact SECO-LARM for more details.
Optional Accessories:
* EV-7100CEILM Ceiling-mount bracket for EV-7105-NPEQ.
* EV-7100POLEM Pole-mount bracket for EV-7105-NPEQ.
* EV-7100CORNM Corner-mount bracket for EV-7105-NPEQ.
| Type |
Miniature PTZ Dome |
| CCD |
1/4" Interline Transfer |
| Resolution |
Color: 520 TV Lines, B/W: 570 TV Lines |
| Picture Elements |
768x494 |
| Video Output |
1.0Vp-p composite video, 75Ω |
| Video output format |
NTSC (PAL also available) |
| Lens |
3.8mm (wide) ~ 38mm (tele) |
| Minimum illumination |
0.7-lux (color) / 0.02-lux (B/W) |
| Day and Night |
Auto / Day / Night (ICR - removable IR cut filter) |
| S/N Ratio |
>50dB (AGC OFF) |
| Zoom |
x10 Optical / x10 Digital |
| Shutter speed |
1/60~1/120,000 s |
|
 |
| AGC (Automatic Gain Control) |
Normal / High / OFF |
| Sense-up (DSS) |
x2~x128 |
| Communication |
RS-485 |
| Protocol |
Pelco-D, Pelco-P selectable |
| Privacy |
4 Zones |
| OSD |
Menu / PTZ information, etc. |
| IP Rating |
IP66 |
| Gamma Correction |
0.45 |
| Operating voltage |
24VAC |
| Power Consumption |
20W (with heater and fan ON) |
| Operating Temperature |
-4o~+122o F (-20o~+50o C) |
| Dimensions |
(4-13/16"x7"x4-13/16") (122x180x122 mm) |
| Weight (Gross) |
2-lb 10-oz (1.2kg) |
|
