Key Specifications

- Optical Zoom 30 times Wide Dynamic Range enhanced by 126X to against strong back light

- High Sensitivity: 0.5Lux / F1.6 (Color), Outstanding WDR 52db

- Super Noise Reduction offer the efficient hard disk saving ( 70% saving effect compared to standard cameras )

- Day & Night Mode by Auto IR Cut Filter Removal available

- Auto Electronic Flip ( Make the images flip 180 degree immediately without interruption while tracking and monitoring the object passing right below the camera for positive direction )

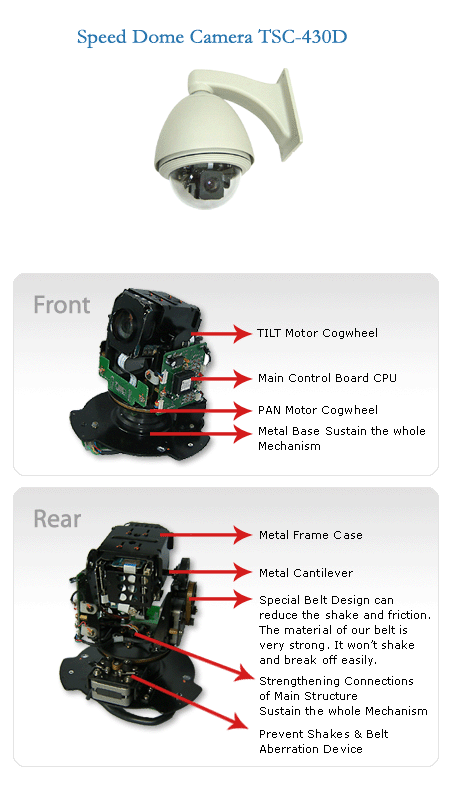

On the surface, our speed dome looks like the same as others'', while, their quality is different in all respects. Inside speed dome mechanism is designed and made by ourselves in Taiwan, so, we have full confidence in our quality. As we use newly stepping motor to drive, and we designed the special belts to reduce the shake and friction. The material of our belt is very strong. It won''t shake and break off easily. It''s made by Matel Frame Case, Matel Cantilever, and Matel Base to sustain the whole mechanism. Besides, the minimum control angle is 0.0225 degrees. It can aim the object accurately, even zoom into the long distance. Then, it has 128 preset positions, 360 degree Continuous Pan Rotation, 90 degree Tilt Scan Range, Manual Pan / Tilt Speed : 0.02 degree ~ 180 degree / sec., Recall Speed : 360 degree /sec., and each preset dwell time can be adjustable during 1 ~ 255 sec.(2s / 5s / 10s / 30s / 60s / 90s / 120s / 250s), and it has 8 level different speed setting.

TSC-430D Outdoor 30x Wide Dynamic High Speed Dome Camera
