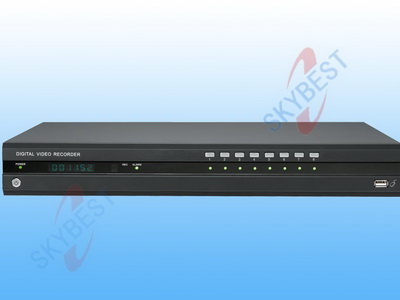

H.264 Stand Alone DVR-H8008 (mobilephone surveillance, IPhone)
Key Specifications
FEATURES
Advanced RTOS;
H.264 compression ;
Video and audio real time recording;
Support MIC input ;
Support VGA output;
Multi-language versions are selectable ;
USB Mouse control; USB/IE/RS485 to upgrade software;
PTZ and network function; Perfect alarm and operation log are convenient for analyse and detection;
Watch-dog built-in; VFD time display synchronizes with DVR system time;
Applied in small surveillance area, such as house, small super market, gas station, villa, etc, and also applied in middle surveillance area.
Model H8008
Operation System Embedded RTOS
Compression H.264
Video Input 8 Channel
Video Output 1 Channel output
Audio Input No
MIC Input 1 Channel
Audio Output 1 Channel
Display Frame Rate NTSC:30 FPS/CH, PAL: 25 FPS/CH
Record Frame Rate NTSC:30 FPS/CH, PAL: 25 FPS/CH
Record Mode Manual, Schedule, Alarm, Motion Detection
Record Resolution 352 x 240 (NTSC) 352 x 288 (PAL)
Playing Mode 1CH, Multi-CH or 4CH (Dualplex)
Searching Mode By Time/ Event/ Channel
HDD >300G , SATA HDD x2
Alarm Input 8 Channel
Alarm Output 2 Channel output
Network IE/PPPOE/DDNS
Remote Control Yes
USB Mouse Control Yes
Mobile Surveillance Support Symbian s60 v3.0 , Mobile Pocket PC operation system
USB Port USB2.0
PTZ Control PELCOD, PELCOD5,PELCOD6,PELCOP1,PHILIPS,SAMSUNG,etc
Language Support Simplified Chinese ,English
VGA Display Yes
Software Upgrade USB/IE/ RS485
Power Supply 12V/ 5A DC
Working Temperature -10 ℃ - + 50 ℃
Working Humidity 10% - 90%
G.W /N.W 3.0KG / 2.1KG
Meas (L x W x H) 405 x 325 x 55mm
