Key Specifications
> Sony Super HAD CCD sensor

> Built-in Board Lens / Cone Lens

> Weatherproof


Image Device :

> KX-31CB :1/4-inch Color Sony Super HAD

> KX-31MB:1/3-inch B/W Sony Super HAD

Picture Elements:

> KX-31CB: NTSC: 510x492, PAL: 500x582

> KX-31MB: EIA: 510x492, CCIR: 500x582


> KX-31CB: 330TVL

> KX-31MB: 420TVL

Min. Illumination:

> KX-31CB: 0.5Lux/ F2.0

> KX-31MB: 0.1Lux/ F2.0

S/N Ratio:More than 48dB

Electronic Shutter:

> KX-31CB: NTSC: 1/60~1/100,000, PAL:1/50~1/110,000

> KX-31CB: EIA: 1/60~1/100,000,CCIR:1/50~1/110,000


Lens Furnished:Board Lens 3.6mm / F2.0(option: 6/ 8/ 12mm)

White Balance:Auto

Gain Control:Auto

Sync. System:Internal

Video Output:1 Vp-p/ 75 Ohms

Audio Output:2Vp-p/ 50 Ohms (option)

Power Supply:DC12V+-10%

Power Cosumption:

> KX-31CB: 117mA max.

> KX-31MB:108mA max.

Operating Temp.:-10 to 50 degrees Celsius

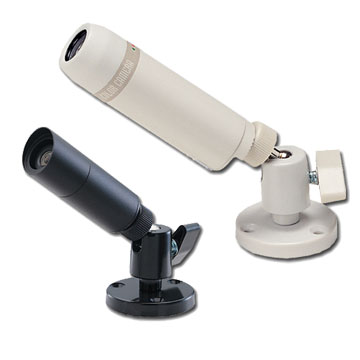

Bullet Camera Built-in Board Lens / Cone Lens[KX-31CB,31MB]
