TECHNICAL SPECIFICATIONS
Call lengthener or light and bell activator: for direct connection of the call lengthener or light and bell activator in the corresponding terminals.

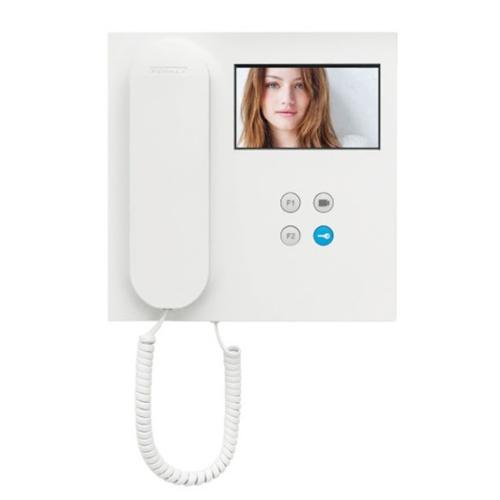

Screen TFT 4.3".
Resolution: 480 (H) x 272 (V) lines.
SURFACE installation (installed on the wall, the extra-thin profile only protrudes 23mm from the wall, 44mm with arm).
Monitor dimensions: 200 x200x44 (height-width-depth).
Power supply: 18 Vdc
Door release and guard unit call button.
Auto-on button for main and secondary camera activation (sequentially).
Call volume control
Colour, brightness and contrast control.
Door bell: for direct house call button connection to monitor/telephone.
Selectable call tunes.
Private communication. Conversation secrecy.
Consumption (±5%):
- in standby: 12mA.
- with audio and video: 300mA.
- call: 400mA.
