Key Specifications

* Very high resolution RGB or XGA video signals with any standard sync configuration over three multimode or singlemode fibers

* Medical image transmission

* Multiple video trunks requiring extremely high resolution

* Large CCTV systems with many tielines or remote cameras

Features & Benefits:

* 3 video transmitters/card (OSD330T)

* 3 video receivers/card (OSD330R)

* Bandwidth of 150MHz per colour

* Extends RGB/XGA transmission to at least 5km on multimode and 30km on singlemode fiber

* Operates on both multimode and singlemode fiber: just one system covers every situation

* Can use Sync-on-Green, composite sync or separate Horizontal+Vertical Sync

* AGC on all three colours ensures automatic colour balance and Plug-and-Play setup

* Supports display systems at up to 1600 X 1200 pixels at scan rates up to 128kHz

* Safe transmission through any environment

* Immune to electrical interference and provides complete end-to-end isolation

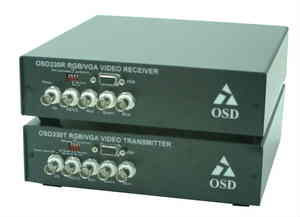

OSD330T / 330R RGB / XGA Video Transmission System
