Key Specifications

* CCTV networks

* Video conferencing

* Transportation networks

* Industrial monitoring systems

* Distance learning

Features & Benefits:

* Uncompressed 9 bit video, 24 bit audio encoding, giving professional quality transmission

* Fiber optic transmission of four or eight video signals on one fiber with four RS232 and RS422 data signals (two of each) which may be one way with the video or, optionally, full duplex

* Optional transmission of four audio and/or four additional high speed data channels which may be one way or full duplex. Alternately, the user may transmit eight audio or eight extra data signals, again either one way or full duplex

* Range of up to 200km is possible with optional 1550nm operation

* Optional duplex operation over one fiber

* Optional 10/100Base T Ethernet bridging through the link

* Operates on either singlemode or multimode fiber

* Video bandwidth of 6 MHz, SNR >63dB

* Audio bandwidth of 15kHz, SNR >100dB

* Video inputs have 3dB overload capacity

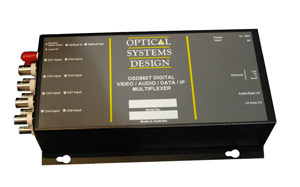

OSD860 Digital 4/8 Channel Video / Audio / Data / IP Multiplexer
