Imagine having an NVR that features a dual-HDD tray, with a compact size smaller than a dictionary with A4 dimensions. This is not just a concept, but a real product already: QNAP VS-2112 Pro+ NVR. The following is a real-life test report highlighting its strengths.
Imagine having an NVR that features a dual-HDD tray, with a compact size smaller than a dictionary with A4 dimensions. This is not just a concept, but a real product already: QNAP VS-2112 Pro+ NVR. The following is a real-life test report highlighting its strengths.
Well-Designed Enclosure
The desktop VioStor VS-2112 Pro+ series from QNAP Systems, Inc. is a Linux-embedded NVR. The front panel design shows a pluggable dual-HDD tray in the middle and LED indicators of HDD operating status on the left side. The power switch, QNAP's unique one-touchauto-video-backup button and USB 3.0 interface are located at the lower side. This structure is able to handle customers' day-to-day operating and recording operations. The rear panel of this product features the main ventilation fan with audio I/ O ports and four USB 2.0 ports at the upper right side. VioStor VS-2112 Pro+ has 2 Giga LAN ports to enable the network streaming of 12-channel inputs from HD IP cameras. In addition, VioStor VS-2112 Pro+ leverages HDMI local outputs and power supplier, which make this thin NVR an ideal option without compromise.
High-Performance CPU

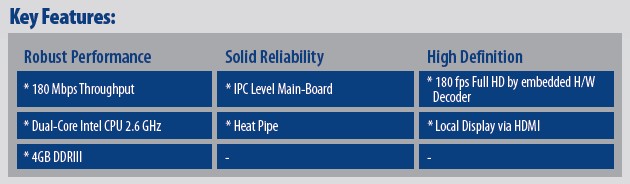

QNAP VS-2112 Pro+ NVR has not only the look, but also the functional feels. Its CPU printed circuit board implements the “Thermal Solution” to reduce the heat so that the fan can work very efficiently to maintain good ventilation. Its CPU uses the high-performance materials of industrial computers to significantly improve the system's stability and reliability. VS-2112 Pro+ NVR supports two HDDs and 12-channel IP camera inputs. Its CPU features dual-core Intel 2.6 GHz processor, 4GB DDRIII RAM, and 180Mbps transmission rate to ensure the stable and seamless recording and playback quality of several megapixels.
Flexible Storage Display
QNAP VS - 2 11 2 P r o + NVR supports up to 8TB storage capacity, which is able to meet the storage needs for high quality H.264, MPEG-4, M-JPEG and MxPEGrecording. Furthermore, it adopts H.264 hardware compression to deliver 1080P Full HD image outputs up to 180 fps. This NVR supports the local display via HDMI outputs as well to deliver the Full HD real-time surveillance.
Rich Simple UI

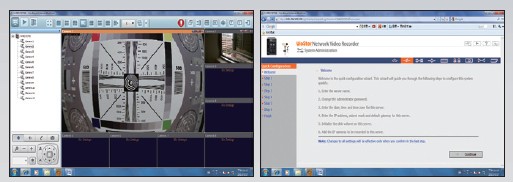

QNAP VS-2112 Pro+ NVR has a very intuitive User Client operating interface supporting multiple display modes, up to 64-channel live view. This interface also supports fish-eye image restore, multiple server monitoring and advanced event management. Users can take advantage of the fish-eye image restore feature for more crystal surveillance images to enhance the security. The on-screen display of QNAP VS-2112 Pro+ NVR groups the monitoring, playback/export and surveillance settings together in blocks to provide the ease of operation. For system setup tasks, this product features step-by-step screens to guide the operators to configure the settings and to eliminate the errors. It offers the preview of camera images and the list of compatible brands and models of IP cameras to help users setup QNAP VS-2112 Pro+ NVR quickly.
Cross-Platform Support
QNAP VS - 2 11 2 P r o + NVR also supports cross platform management. It includes QNAP Surveillance Client software for Windows and Mac OS, and VMobile mobile surveillance app for mobile devices of iOS, Android and Windows Mobile 6.1-6.5 versions. The VioStor NVR management tasks are able to be performed within the web browsing interface of PC or notebook workstations. Users can also use VMobile mobile app to perform remote surveillance via Android, iOS and Windows Mobile devices. This feature enables users to monitor the network cameras and playback the recording files on VioStor NVR anytime, anywhere, with great convenience.
Best for Business and Home Security
QNAP VS-2112 Pro+ NVR provides high performance, high reliability and excellent quality of local playback features. This product can meet the high resolution requirements in the surveillance markets and is the ideal choice for small and medium sized businesses and home offices. QNAP VS-2100 Pro+ series NVR is especially an ideal solution for small scale surveillance such as retail stores, parking lots, care centers, or at homes, coming with favorable affordability and flexibility.
