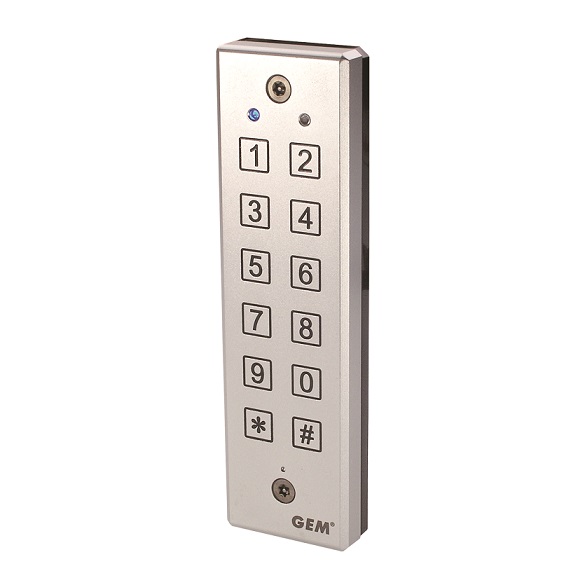

Gianni Industries DG-185 Digital Keypad
Product Specifications
Features：
• Split off controller and keypad for high security
• Aluminum alloy casing designed with vandal resistant screws for enhanced safety& durability
• Narrow dimension for narrow jambs
• Epoxy sealed for waterproof function against extremely harsh weather.
• Allows up to 200 + 10 users
• 29-digit-code password protected design
• 3 LED indicators & buzzer for status indication, keypad with beep sound
• Invalid PIN Lockout
• Additional input for Anti-Tailgating
• Non-Volatile Memory
• Dual relays output for multi-control
• Built-in tamper switch
Specifications：
| Operating Voltage |
12~24VAC/DC |
| Current Draw |
Holding:70mA, Pull in:130mA/12VAC/DC
Holding:50mA, Pull in:100mA/24VAC/DC |
| Keypad |
Backlit 6X2 matrix keypad (0~9,＊, #) |
| Input |
1 contact for Request-To-Exit button
1 contact for Door Reed Switch |
| Output |
2 Relays (Dry Contacts: N.O./N.C./COM) |
| Relay Electric Current |
Max.12A/14VDC ; 7A/120VAC |
| LED indicator |
3 LEDs (Red/ Yellow/ Green) |
| Memory Volume |
200+10 PINs |
| Relay Strike Time |
01~99 seconds or Toggle Mode(00) |
| Ambient Humidity |
5~95%(Non-condensing) |
| Operating Temperature |
-20°C~70°C |
